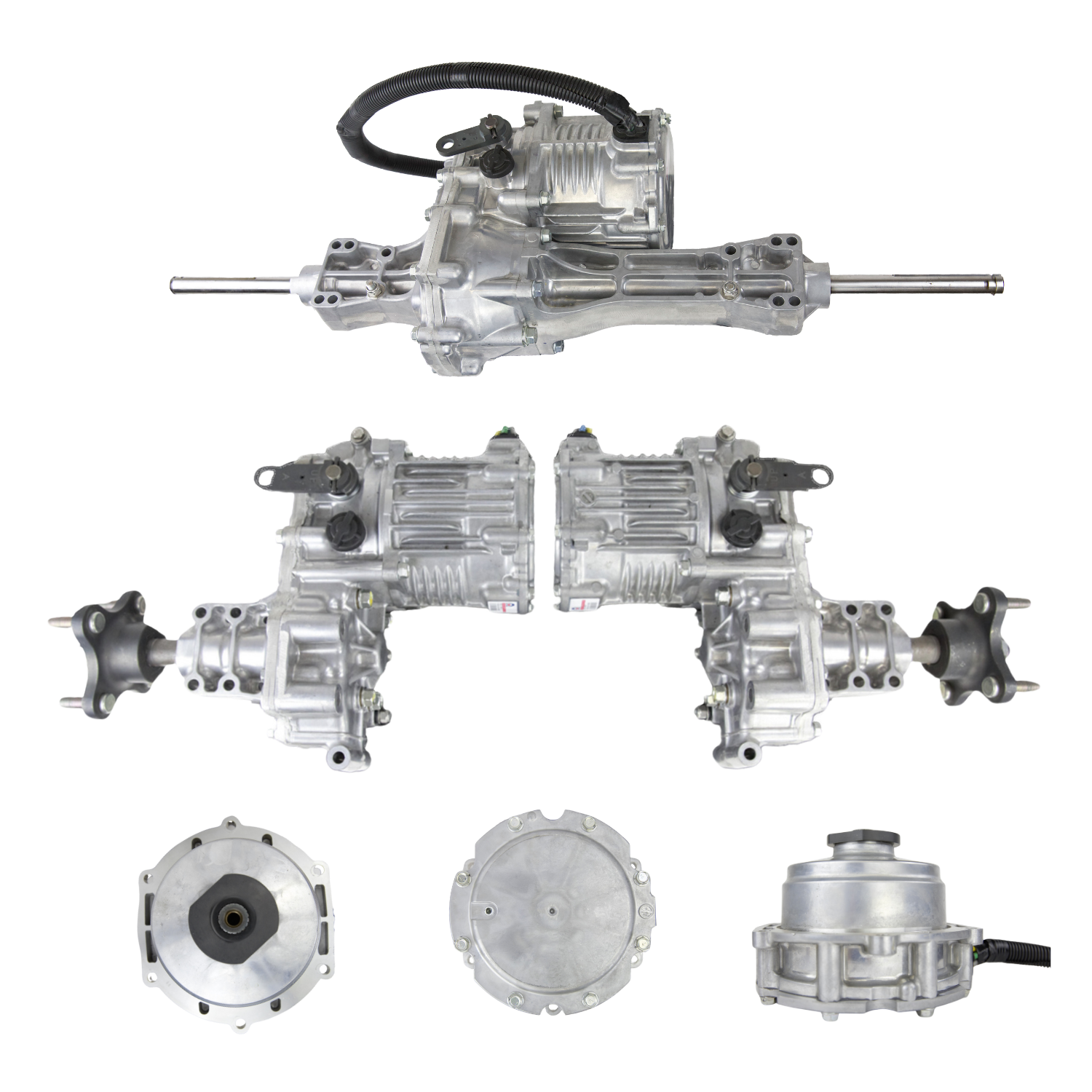

Electric Drive Solutions
Tuff Torq designs electric drivetrain systems to perform in the most demanding off-highway environments, combining innovation, durability, and power. Our solutions support OEM zero-turn and lawn tractor platforms, as well as diverse retrofit applications with examples like spreaders, powered wheelbarrows, golf ball pickers and more. With proven performance and full technical support, OEMs can explore electrification safely and evaluate electric options with minimal risk.
If you want to learn more about the e-DS product offerings

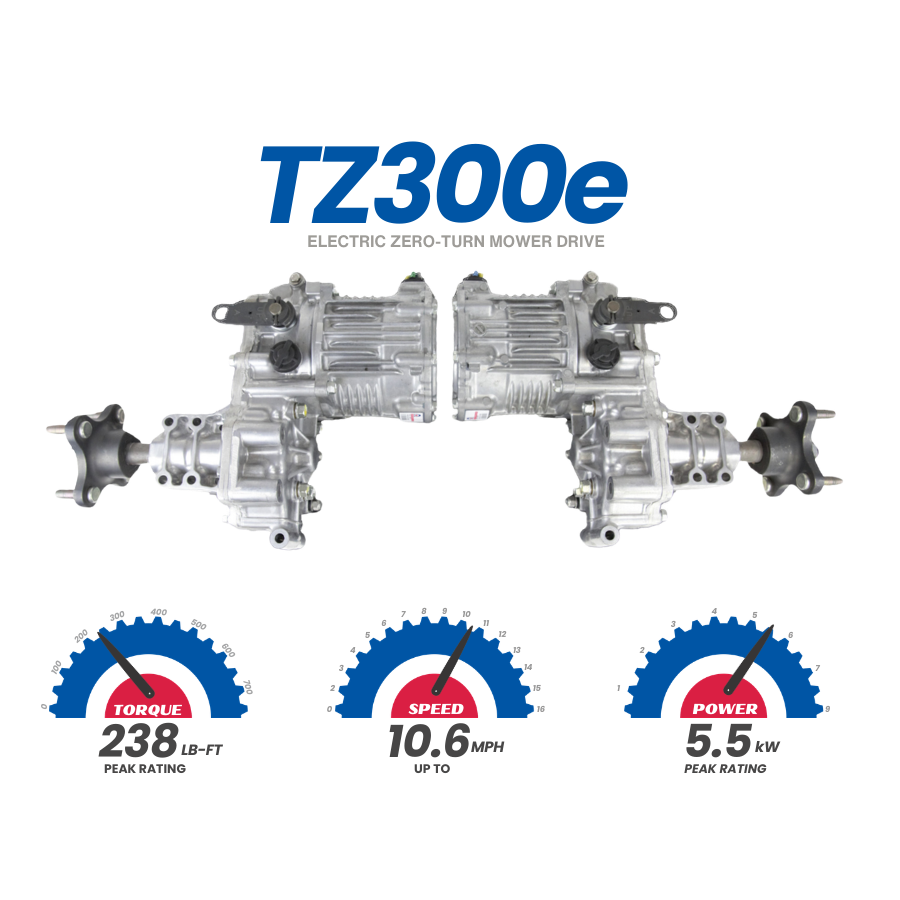

ZTR Electric Drive
The TZ300e series units have been developed specifically to meet the needs of those looking to make the transition into the electric market. These units are packed with the power and torque needed from our TUFF GRADE product line. Paired with our SM200e spindle motors, which are also manufactured at our factory in east Tennessee, these systems are built to integrate, install and service with ease. Request a sample and allow us to help configure your system today!
Specifications:
- Motor Type – Brushless DC
- Build Grade – Tuff
- Max Vehicle Weight – 1038 lbs.
- Max Vehicle Speed – 10.6 mph
- Peak Power Rating – 5.5 kW
- Torque Output – Up to 238 lb-ft.
- Axle Size – 1″
- Voltage – 48V – 60V
- Weather Rating – IP66

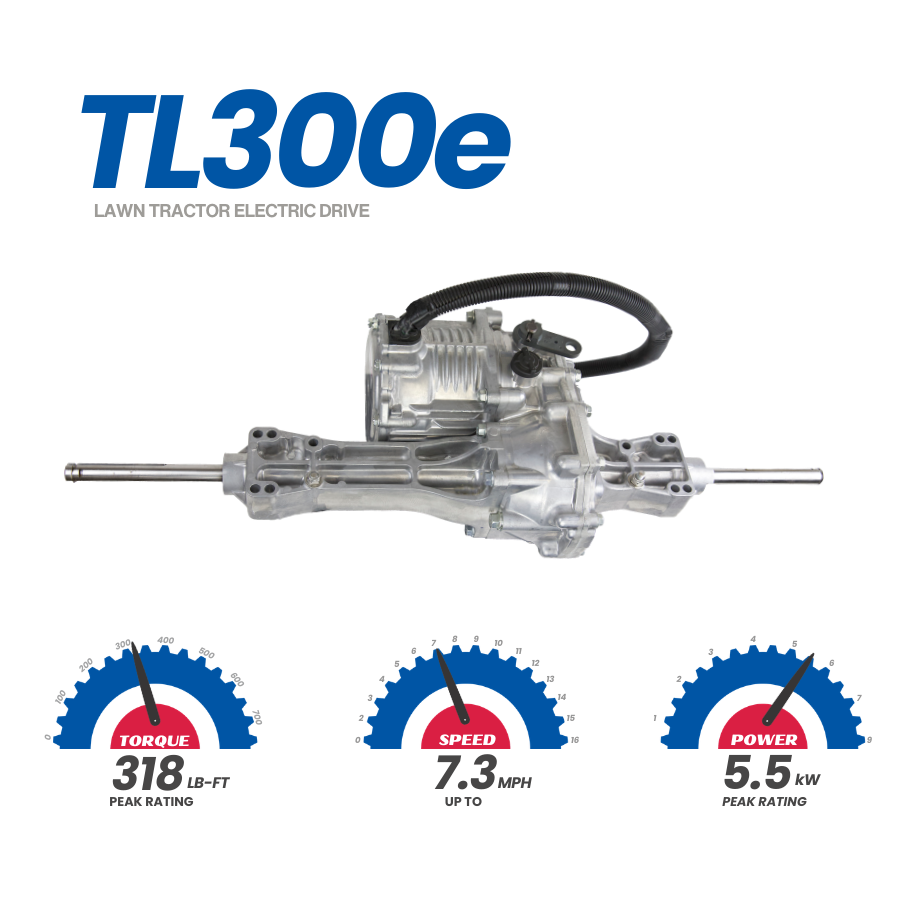

Lawn Tractor Electric Drive
The TL300e series units have been developed specifically to meet the needs of those looking to make the transition into the electric market. These units are packed with the power and torque needed from our TUFF GRADE product line. Paired with our SM200e spindle motors, which are also manufactured at our factory in east Tennessee, these systems are built to integrate, install and service with ease. Request a sample and allow us to help configure your system today!
Specifications:
- Motor Type – Brushless DC
- Build Grade – Tuff
- Max Vehicle Weight – 871 lbs.
- Max Vehicle Speed – 7.3 mph
- Peak Power Rating – 5.5 kW
- Torque Output – Up to 318 lb-ft.
- Axle Size – 3/4″
- Voltage – 48V – 60V
- Weather Rating – IP66
Electric Drive Spindle Motor
From our TUFF GRADE product line these SM200e series motors have been developed to support the transition into the electric market. Though designed to couple with our TZ300e and TL300e series traction motors, these low-profile units can be converted to stand alone applications, serving a number of desired needs. Built in Morristown, Tennessee. Request a sample and allow us to help configure your system today!
Specifications:
- Motor Type – Brushless DC
- Build Grade – Tuff
- Peak Power Rating – 4.0 kW
- Continuous Power Rating – 1.5 kW
- Voltage – 48V – 60V
- Weather Rating – IP66
Tuff Torq e-Drives are Customizable
Built on the foundation of combining Japanese engineering with American production, Tuff Torq has earned its reputation as a premier global manufacturer and industry-leader by producing innovative, high-quality products that are tailored to the unique needs of their clients.
Our new products can be used in their current configurations or can serve as a starting point for further customization based on specific product and application requirements. To learn more about our latest innovations please complete the below.
